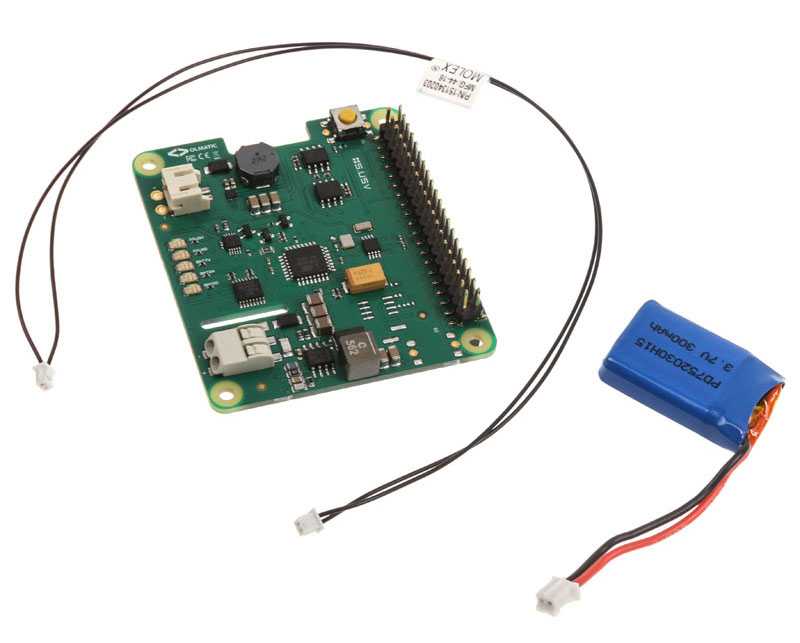

S.USV UPS For All UP boards

S.USV UPS For All UP boards

Tootekood: 573808

97,00 / tk
97,00 / tk
Kohaletoimetamise summa alates 3,99 €*. Tarne 3. jaanuar
* Tarne hinna arvutatamisel arvestatakse nii teenustasu kui toote kaalu: 1.00 kg
Kauba kättesaamine kauplusest on tasuta. Täidame tellimuse 2. jaanuar
Tarne pakiautomaati 0,00 €*. Kauba kohaletoimetamine 3. jaanuar
Tooteinfo

Toote omadused

Kaubamärk S.USV
Garantii 24 kuud
Täiendav info Reaalajas kell. Sisseehitatud aku
Tootekirjeldus inglise keeles:


Behind the name S.USV hides a young German brand, which specializes in accessories for mini-computers. The main focus is placed on an uninterruptible power supply. The "S.USV UPs" version offered here is an extended power supply add-on module with integrated and adjustable charging function for all UP boards, with the main focus on the uninterruptible power supply of the single-board computer. For example, a significantly faster battery charging time can be achieved by setting the charging current to 1A (instead of the standard 300 mA).

As a fully functional plug & play solution, power is supplied to the S.USV UPs directly through the 40-pin GPIO connector on the UP Board, sharing a common power source. As a result, no further wiring or power supplies are necessary. To safely shut down the UP Board in the event of a malfunction and prevent data loss, the module is equipped with a long-life LiPo battery that covers the required voltage range via a boost switching power converter

For example, if the power supply of the mini-computer falls below an adjustable voltage threshold, the S.USV UPs automatically switches to battery mode and keeps the functionality of the UP board constant for a user-settable period of time, thereby bypassing the power failure or driving the single-board computer safely shut down in the event of a long-term power failure.

The uninterruptible power supply of the UP Board is guaranteed by a fully integrated monitoring system with a wide range of operating options. All possible operating states of the UP board are monitored internally, so that the module is always capable of responding to misconduct.

This UPS variant also provides a mains input for the extended voltage range of 7-24 volts. All operating states or switching operations can be checked and controlled via a software including smartphone app or tablet.

Technical details:
  • Dimensions: 65 x 56.5 mm (W x D)
  • Uninterruptible power supply: 5 Volt / 2,500 mA
  • Extended voltage range: 7-24 volts / 2,500 mA
  • Interface: GPIO 40-pin
  • Compatibility: all UP boards
  • Special Features:
    Extended Voltage
    Range ID EEPROM
    Monitoring System
    Mobile Application
    Durable LiPo Battery
    Battery Management
    Battery Monitoring
    Real Time Clock
    Raspberry Pi Supply Switch


  • Tüüp: Laienduskaardid
